Technical Assembly Reveal Studio for Blender

Technical Assembly Reveal Studio for Blender

Three authored exploded-view presentations with editable offsets, timing and callouts.

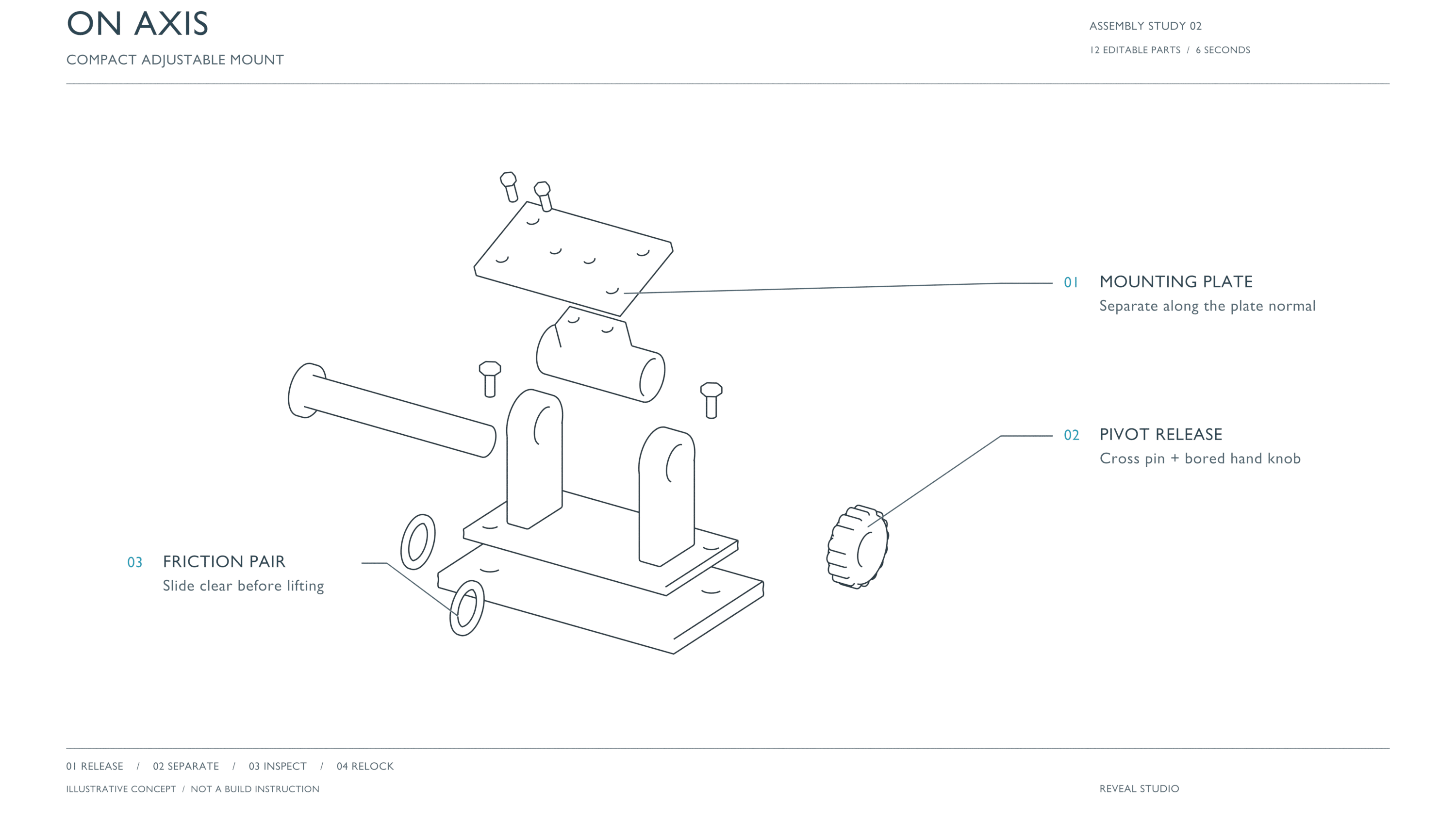

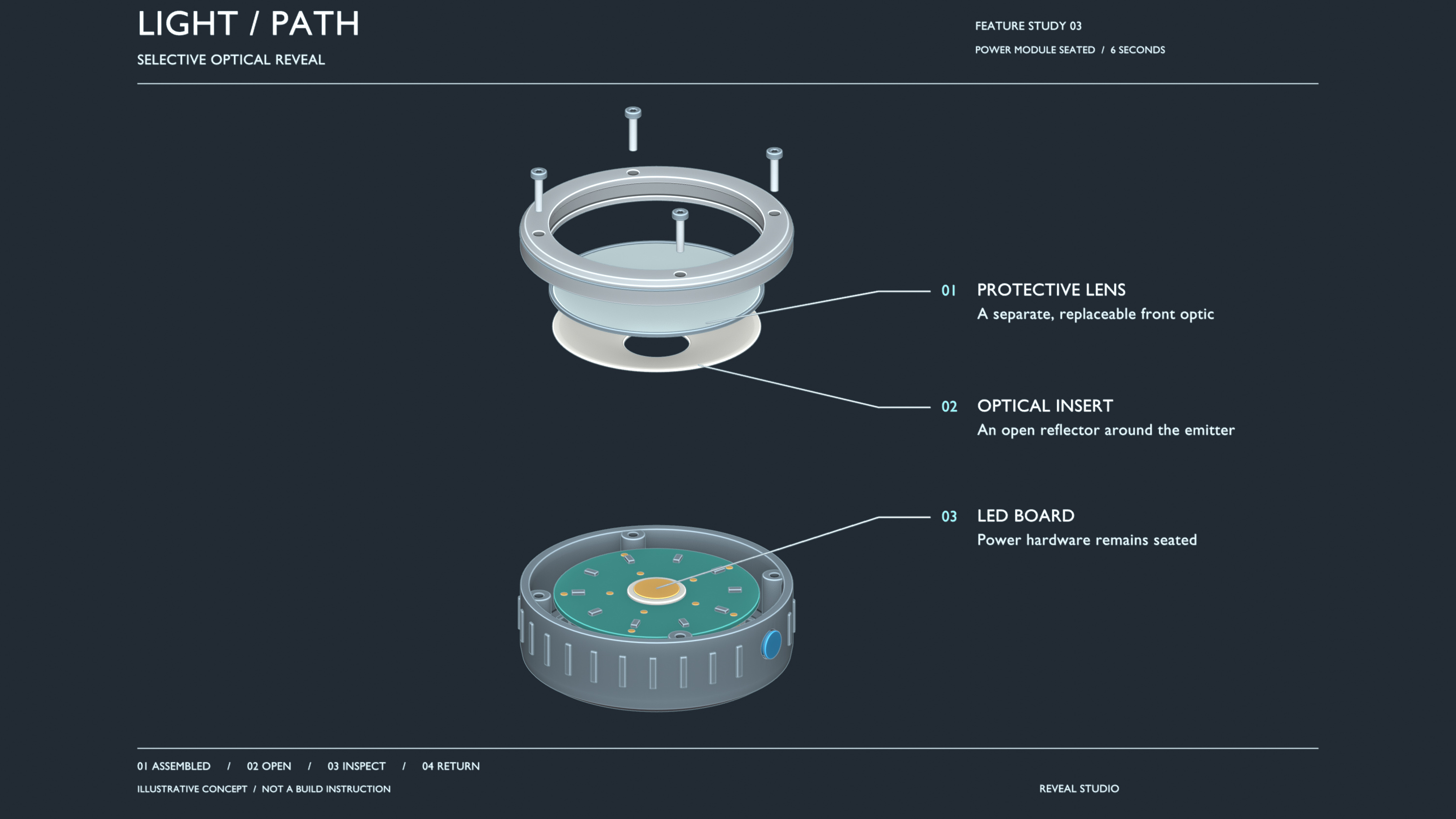

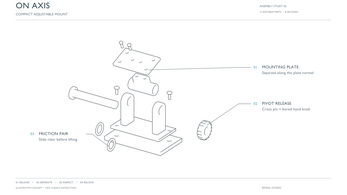

Explain the relationship between separated parts using an inspection-light reveal, staged mount separation and selective optical reveal.

WHAT YOU GET
- 3 editable .blend presentations
- 3 six-second 1920 × 1080 MP4 previews at 24 fps
- 6 3000-pixel PNG stills across 2 delivery archives
- 2 phase charts, guides and an 8-part neutral workflow fixture

COMPATIBILITY
Blender 4.3.2. Workbench for studio/dark scenes; Cycles emission surfaces plus Freestyle for white-line presentation.

LIMITS
Invented presentation assemblies, not mechanical/electrical specifications or repair/manufacturing instructions. Model replacement expects already-separated parts. Preview timing is compact; extend holds for text-heavy work.

RIGHTS
Commercial use of the original artwork in finished projects and bounded client
source handoff is permitted. Standalone artwork/asset-pack redistribution is
not permitted. Included bpy-dependent source is GPL-3.0-or-later; independent
original code is MIT. These code licenses permit redistribution and modification
and are not restricted by the artwork license. Fonts retain their own notices.
Read the included complete licenses and exact code schedule before use.

AI DISCLOSURE
Code, geometry, visual design and documentation were developed with AI assistance. Product previews are renders or captures of the supplied work, not generated substitute product photographs.

DOWNLOADS
Technical_Assembly_Reveal_Studio_v1_Part_1.zip
Technical_Assembly_Reveal_Studio_v1_Part_2.zip
All parts together make one product. Extract into the same parent folder.
